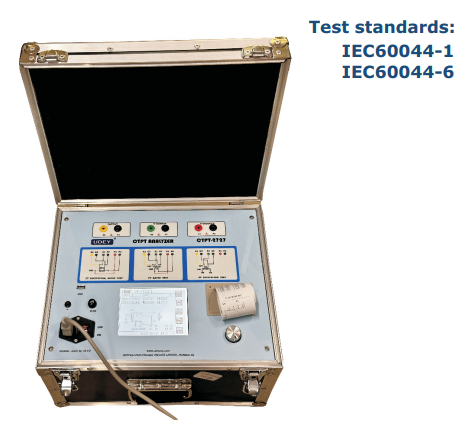

CT / PT Analyzer
Model : CTPT-2727
UDEY ‘CTPT-2727 is a comprehensive CT and PT analyzer. It adopts high performance DSP and ARM, advance technology to ensure stable and reliable performance, fully featured, with high degree of automation and high efficiency.
Machine Feature
- Test standards: IEC60044-1, IEC60044-6
- CT-type : P, TPY, metering, PR, PX,TPS, TPX and TPZ etc. can be measured
- Ct’s Excitation characteristics (Volt/amp),Ratio, Polarity, Secondary Winding resistance, Secondary Burden, Ratio error and Phase Displacement.
- Pt’s Excitation characteristics (Volt/amp),Ratio, Polarity, Secondary Winding resistance, Ratio error and Phase Displacement.
- CT and PT parameters including ‘Knee point voltage/current’, ‘10% Error curve’, ‘Accuracy limit factor (ALF)’, ‘Instrument security factor (FS)’, the ‘Second time constant (Ts)’, ‘Remanence coefficient (Kr)’, ‘Saturated and unsaturated inductance’ etc.
- Built-in thermal printer
- Large LCD display
- USB disk transfer test data to PC for analysis and transforming into word document.
- 1000 groups can be saved in Memory
- Light weight of 10 kg
Machine Technical Specification
| Test Standards | IEC 60044-1, IEC 60044-6 |
|---|---|
| Power Supply | 220V ± 10% AC 50/60 Hz. |
| Usage | CT, PT |
| Output | 0-180Vrms, 12 Arms, 36A (peak Value) |
| Voltage Measuring Accuracy | ±0.1% |
| CT Ratio Range | 1:40,000 |
| CT Accuracy | ±0.05% |
| PT Ratio Range | 1:40,000 |
| PT Accuracy | ±0.05% |
| Phase Range | ± 2 min |
| Phase Accuracy | 0.5 min |
| DC Resistance Range | 0 – 300 Ohms |
| DC Resistance Accuracy | 0.2% ±2mOhm |
| Burden Range | 0 – 1000VA |
| Burden Accuracy | 0.2% ±0.02VA |
| Ambient Conditions | Operating Temp: 45°C, RH: <90% |
| Dimensions (Approx) | 365 × 290 × 153 mm (W × D × H) |
| Weight (Approx) | 10 kg |
| Printer | Built-in thermal paper printer |
| USB | USB port to connect flash drive |
| Accessories |
|
- + Feature
Machine Feature
- Test standards: IEC60044-1, IEC60044-6
- CT-type : P, TPY, metering, PR, PX,TPS, TPX and TPZ etc. can be measured
- Ct’s Excitation characteristics (Volt/amp),Ratio, Polarity, Secondary Winding resistance, Secondary Burden, Ratio error and Phase Displacement.
- Pt’s Excitation characteristics (Volt/amp),Ratio, Polarity, Secondary Winding resistance, Ratio error and Phase Displacement.
- CT and PT parameters including ‘Knee point voltage/current’, ‘10% Error curve’, ‘Accuracy limit factor (ALF)’, ‘Instrument security factor (FS)’, the ‘Second time constant (Ts)’, ‘Remanence coefficient (Kr)’, ‘Saturated and unsaturated inductance’ etc.
- Built-in thermal printer
- Large LCD display
- USB disk transfer test data to PC for analysis and transforming into word document.
- 1000 groups can be saved in Memory
- Light weight of 10 kg
- + Technical Specification
Machine Technical Specification
Test Standards IEC 60044-1, IEC 60044-6 Power Supply 220V ± 10% AC 50/60 Hz. Usage CT, PT Output 0-180Vrms, 12 Arms, 36A (peak Value) Voltage Measuring Accuracy ±0.1% CT Ratio Range 1:40,000 CT Accuracy ±0.05% PT Ratio Range 1:40,000 PT Accuracy ±0.05% Phase Range ± 2 min Phase Accuracy 0.5 min DC Resistance Range 0 – 300 Ohms DC Resistance Accuracy 0.2% ±2mOhm Burden Range 0 – 1000VA Burden Accuracy 0.2% ±0.02VA Ambient Conditions Operating Temp: 45°C, RH: <90% Dimensions (Approx) 365 × 290 × 153 mm (W × D × H) Weight (Approx) 10 kg Printer Built-in thermal paper printer USB USB port to connect flash drive Accessories - Mains cord 2 mtr long – 1 number
- Test leads Red 6 mtr long – 1 number
- Test leads Yellow 6 mtr long – 1 number
- Test leads Green 6 mtr long – 1 number
- Earth Leads 3 m long – 1 number
- Crocodile clip 12 mm – 4 numbers
- Crocodile clip 20 mm – 2 numbers
- U insert 6mm – 4 numbers
- USB – 1 number
- Glass Fuse 10A – 4 numbers
- Aluminum Transport Case – 1 number
- Operating Manual – 1 number
