AT-100

Insulating Oil Tester

AT-100

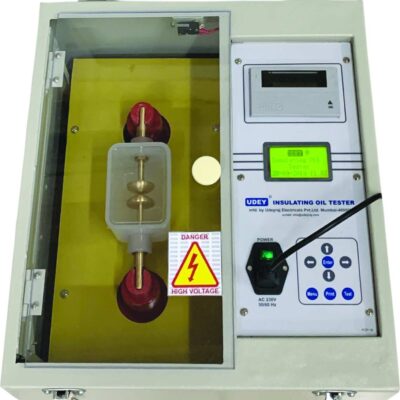

Model : AT-100

UDEY insulating oil testers are market standards since 1960 and several thousand of units are in use around the world. Model AT-100 is fully automatic compact and portable testers giving smooth variable outputs of 0-100kV for testing dielectric of insulating oils used in electrical equipments. Stirrer is provided to stir oil for 60 seconds. Timer of 60 seconds is provided for conducting withstand tests.

Machine Feature

  •  Easy operation-Fully automatic test cycle along with average BDV display.
  • Automatic change of sample number of test.
  • Automatic calendar and time running even with power off.
  • Recall and print last 99 test results stored for 100 years even with power off.
  • Programmable: Number of tests, Settling time, stir time, and waiting time.
  • LCD displays: Test status, HV rise, HV fall, BDV of previous test and test results.
  • Tests to: IEC 156, IS 6792, JIS C2101, BS 5874, VDE 0370, GB-86 etc.
  • Countdown display of time in ‘Settling, Stir, and Waiting’ modes.
  • Built in printer.
  • Zero start safety and test chamber access interlock.
  • Ergonomic design, completely user friendly-just 36 kg in weight.

Machine Technical Specification

Input Supply220V±10% Volts AC, 50 Hz, single phase.
Test VoltageModel: AT-100
Capacity2 kVA.
Accuracy2%
Wave form Distortion< 3%.
Time of Breakdown<10 millisecond.
Rate of rise of Voltage2 kV per second ± 20%.
kV IndicationThree Digit.
Test number indicationOne Digit.
User defined settingsa) Calendar, sample number
B) Number of Tests Settable from 1 to 9 times.
c) Settling time Settable from 0-999 seconds.
d) Stirring time Settable from 0-999 seconds.
e) Waiting time Settable from 0-999 seconds.
Test cell with ElectrodesType ‘TC-2’: 36 mm mushroom electrodes.
Type ‘TC-3’: 25 mm flat disc electrodes.
Type ‘TC-1’: 13 mm round electrodes.
Gap Gauge2.5 mm
PrinterBuilt in printer for printing results on plain paper.
ConstructionIn light weight aluminum cabinet with removable cover, lock and lifting handles.
Temperature Range5 to 40º C
Relative Humidity< 85% RH
Working Altitude< 1500 meters.
Dimensions/weight (App)43 x 40 x 40 cm. Net 42 kg.
Optional AccessoriesTest cells: ‘TC-1’ or ‘TC-3’. Gap gauge: 2 mm.

Standard Accessories

  • Moulded Oil test vessel with electrodes TC-2 type -1 number.
  • Magnetic magnum for stirrer.
  • Mains connecting cable.
  • Gap gauge.
  • Paper roll for printer, 1 no.
  • Spare fuses 1 nos.
  • Operating manual 1 no.
+ Feature

Machine Feature

  •  Easy operation-Fully automatic test cycle along with average BDV display.
  • Automatic change of sample number of test.
  • Automatic calendar and time running even with power off.
  • Recall and print last 99 test results stored for 100 years even with power off.
  • Programmable: Number of tests, Settling time, stir time, and waiting time.
  • LCD displays: Test status, HV rise, HV fall, BDV of previous test and test results.
  • Tests to: IEC 156, IS 6792, JIS C2101, BS 5874, VDE 0370, GB-86 etc.
  • Countdown display of time in ‘Settling, Stir, and Waiting’ modes.
  • Built in printer.
  • Zero start safety and test chamber access interlock.
  • Ergonomic design, completely user friendly-just 36 kg in weight.
+ Technical Specification

Machine Technical Specification

Input Supply220V±10% Volts AC, 50 Hz, single phase.
Test VoltageModel: AT-100
Capacity2 kVA.
Accuracy2%
Wave form Distortion< 3%.
Time of Breakdown<10 millisecond.
Rate of rise of Voltage2 kV per second ± 20%.
kV IndicationThree Digit.
Test number indicationOne Digit.
User defined settingsa) Calendar, sample number
B) Number of Tests Settable from 1 to 9 times.
c) Settling time Settable from 0-999 seconds.
d) Stirring time Settable from 0-999 seconds.
e) Waiting time Settable from 0-999 seconds.
Test cell with ElectrodesType ‘TC-2’: 36 mm mushroom electrodes.
Type ‘TC-3’: 25 mm flat disc electrodes.
Type ‘TC-1’: 13 mm round electrodes.
Gap Gauge2.5 mm
PrinterBuilt in printer for printing results on plain paper.
ConstructionIn light weight aluminum cabinet with removable cover, lock and lifting handles.
Temperature Range5 to 40º C
Relative Humidity< 85% RH
Working Altitude< 1500 meters.
Dimensions/weight (App)43 x 40 x 40 cm. Net 42 kg.
Optional AccessoriesTest cells: ‘TC-1’ or ‘TC-3’. Gap gauge: 2 mm.
+ Standard Accessories

Standard Accessories

  • Moulded Oil test vessel with electrodes TC-2 type -1 number.
  • Magnetic magnum for stirrer.
  • Mains connecting cable.
  • Gap gauge.
  • Paper roll for printer, 1 no.
  • Spare fuses 1 nos.
  • Operating manual 1 no.

BDV Test of Transformer Oil

The insulating oil tester AT-100 is a tool to measure the BDV of Transformer Oil and the values are displayed on a screen. The device is fully -automatic thus making testing very simple and error free results. The advantage of this device is that it is light weight, portable with built in printer, day, date time etc. There is a wide range of voltage outputs that the insulating oil tester AT-100 can measure which varies between 0 to 100 kilo voltage for testing the dielectric of insulating oils used in electrical equipment.

The BDV test kit consists of a Gap gauge, test cells with electrodes, Oil test vessel with electrodes TC-2 type -1 number, Magnetic magnum for stirrer, Mains connecting cable, Paper roll, Spare fuses and an operating manual. The BDV Test of Transformer Oil has a breakdown time of less than 10 milliseconds, a rise rate of voltage is 2 KV per second, and the KV indication appears in three digits. The user defined settings in this tester include Calendar, sample number, stirring time and the number of Tests is settable from 1 to 9 times.
